T Power Air Electric Drone Motor for Commercial Use
TECO focuses on agricultural, commercial, and logistics drones. The newly developed medium-sized UAV hairpin motor incorporates five patented technologies: in-slot air cooling, resistance to 20 g axial shock, triple-protection coating, high-grade salt spray resistance, and high-temperature aluminous housing for anti-bearing slip. It supports a MTOW of 150 kg, meeting the requirements for electric VTOL (Vertical Take-Off and Landing) aircraft.
The mass-produced OD128 medium-sized drone motor uses an outer-rotor hairpin concentrated winding with a Halbach magnet arrangement, achieving a torque density of 25 Nm/kg and a peak power exceeding 13 kW, with a single motor capable of lifting over 75 kg.
These high-speed, high-voltage, high power-density electric motors demonstrate TECO’s innovation and manufacturing strength in smart mobility and UAV applications.
Core Advantages
Advanced Technology
Hairpin concentrated winding technology enhances power output and payload capacity.
Patented Innovation
Acquire five patents, including one invention patent.
Versatile Applications
Focused on agricultural and commercial UAV applications.
Product

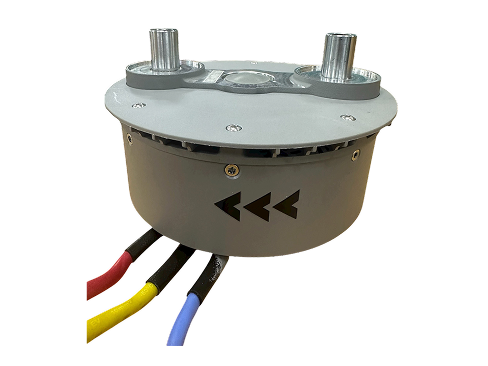

T Power Air OD128 UAV Powertrain
