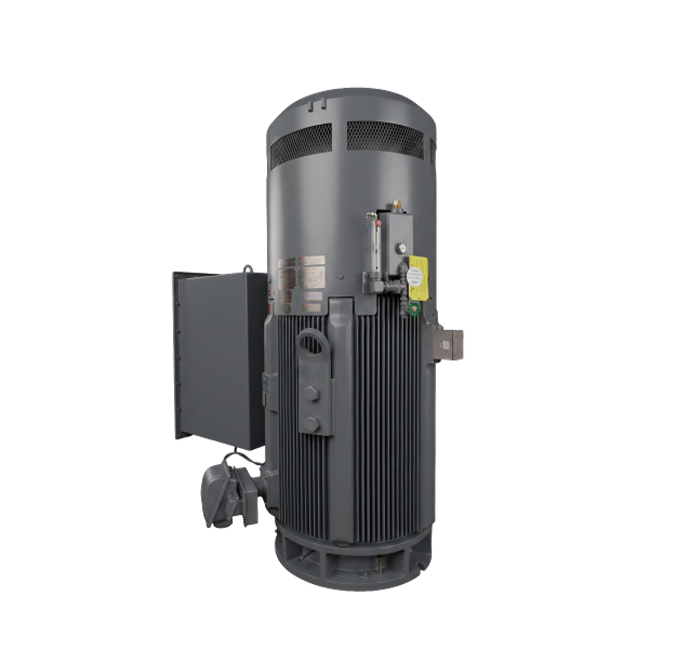

Totally Enclosed Fan Cooled (TEFC) Hight Thrust Motors (NEMA)
This heavy-thrust, high-voltage motor slashes energy costs while delivering unstoppable, weather-proof performance for the most demanding vertical pumping systems.
- High Thrust Capacity for Reliable Vertical Pump Operation
- Premium Efficiency for Reduced Energy Consumption
- Rugged TEFC Construction for Harsh Environment Protection
- Totally Enclosed Fan-Cooled (TEFC) Structure
Specification
| Motor Type | AFHCED |
| Output Range | 200 - 1000HP |
| R.P.M. | 1800 – 900 |
| Voltage | 2300V / 4000V, 4160V |
| Frequency | 60HZ |
| Frame Size | 5009 – 5810 |
| Pole | 4 - 8 |
| Enclosure | Totally enclosed, IP55 |
| Amb. Temp. | -15°C ~ 40°C |
| Cooling | Self external fan, surface cooling (IC 411) |
