High Precision, High Response for Stable Motion Control
TECO’s new generation servo drives feature a slim profile design, high frequency response, short settling time, and support for high-resolution encoders, showcasing the "Fast, Precise, and Stable" control characteristics of TECO servos. They are compatible
with high-speed bus communication (EtherCAT/CANopen) and multi-axis applications.
New functions such as built-in auto-gain tuning, resonance suppression, and full-closed loop control are included. Paired with user-friendly monitoring and tuning software, they can be easily set up to meet various requirements.
TECO servo motors have a power range up to 15 kW and are equipped with 23-bit high-resolution encoders, offering low, medium, and high inertia options, as well as multiple speed selections. Performance specifications include a maximum speed of 6,000 rpm, low
cogging torque, compact motor length, and excellent temperature rise characteristics, ensuring reliable performance in all applications.
Product

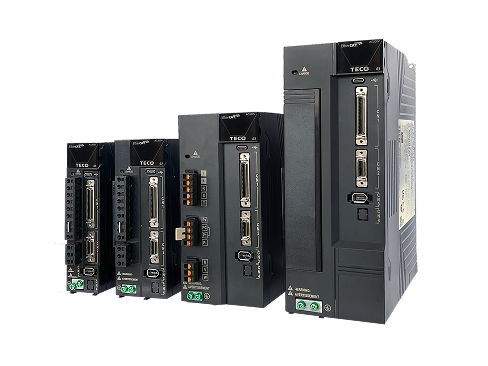

JSDG3-E AC Servo Drive
TECO presents the third-generation high-performance, high-precision digital communication type AC servo drive system, JSDG3-E. Power range: 50W to 15kW, suitable for the requirements of various automation equipment.
Key Features:
- High-Speed Performance: Utilizes high-end CPU and FPGA computing components, featuring a 3.2 kHz high servo bandwidth and 1 ms settling time to achieve ultimate fast response performance.
- Ultra-High Resolution: Encoder resolution up to 23-bit, supporting high-precision control requirements.
- High-Speed Communication: Compatible with high-speed communication protocols CANopen and EtherCAT for wide application in multi-axis, highly synchronized industrial automation equipment.
- Built-in Smart Functions: Includes real-time auto-gain tuning, low-frequency vibration suppression, model tracking control, and friction compensation, significantly enhancing system adaptability and control stability.
- Versatile Application Modes: Supports various application modes, including turret and tool magazine control, gantry synchronization control, flying shear control, and full-closed loop control, meeting the demands of high-end processing and synchronization control.

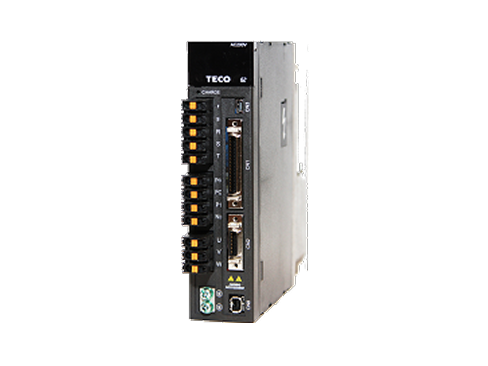

JSDG2S AC Servo Drive
TECO presents the second-generation high-performance servo product, JSDG2S. Power range: 100W to 15kW, corresponding to the requirements of various equipment.
- Stable High-Precision Control: Equipped with a 1.5 kHz high response bandwidth and 23-bit high-resolution encoder motors, providing stable and high-precision control.
- High-Speed Communication: Supports the EtherCAT high-speed communication protocol, enhancing multi-axis applications and real-time control capabilities to improve system integration competitiveness.
- Multiple Smart Application Functions: Includes Auto-Tuning functionality and high/low-frequency resonance suppression technology.
- User-Friendly Software: Paired with PC setting software featuring a friendly user interface for simple setup, quick start-up, and reduced tuning time.

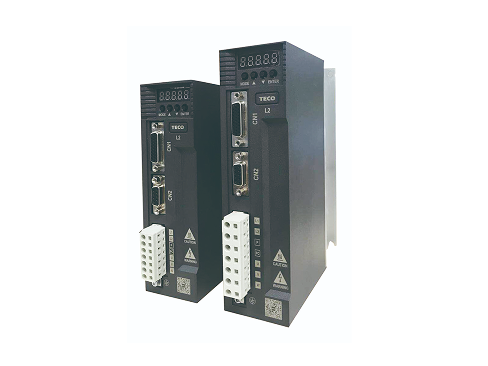

JSDL2 AC Servo Drive
TECO's second-generation position control type servo system, JSDL2. Power range: 0.1 kW to 1 kW, suitable for general small and medium-sized machinery equipment.
- Stable & Precise Positioning: Equipped with a 1.2 kHz high response bandwidth and 17-bit high-resolution motors, providing stable and precise positioning control capabilities.
- Fast Setup: Supports Auto-Tuning functionality, allowing for quick completion of servo parameter settings.
- Enhanced Stability: Features high/low-frequency resonance suppression technology to effectively enhance operational stability and mechanical lifespan.
- Reduced Integration Time: Paired with PC setting software featuring a simple interface, easy operation, and quick start-up, significantly reducing system integration and commissioning time.
- High Cost-Performance: Offers a high CP (Cost-Performance) value and competitive solution for general position control applications.
JSDE2 AC Servo Drive
TECO's second-generation general-purpose servo system, JSDE2. Power range: 0.1 kW to 3 kW, suitable for various general mechanical applications.
- Superior Precision & Stability: Features 1.5 kHz high frequency response speed and 23-bit high-resolution motors, providing excellent control precision and operational stability.
- Fast Optimization: Equipped with Auto-Tuning functionality for quickly optimizing servo system parameters.
- Enhanced Stability: Provides high/low-frequency resonance suppression technology to effectively reduce the impact of mechanical resonance and enhance system stability.
- Easy Configuration: Paired with PC setting software that is simple to operate and quick to master, saving time on tuning and configuration.

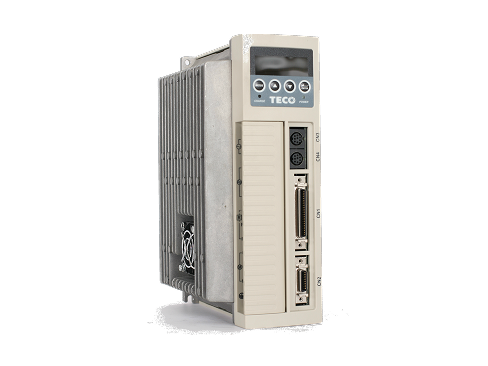

JSDAP AC Servo
The JSDAP advanced servo system, with a power range of 100W to 15kW, is suitable for various industrial automation equipment requirements.
- Supports 15-bit absolute type and 17-bit incremental type encoder motors, providing high precision and fast response.
- Adopts a dual-core architecture to significantly enhance computing efficiency and shorten protection response time, thereby improving system stability.
- Complemented by peripheral monitoring software, it allows for complete system monitoring and maintenance, ensuring safe system operation.
- Offers a cost-effective industrial automation solution to meet diverse application needs.

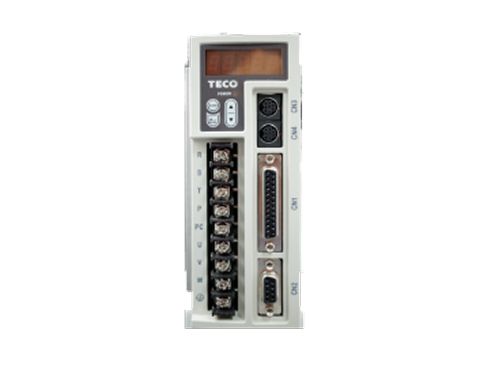

JSDEP AC Servo Drive
The JSDEP standard type servo system, power range: 100W to 3kW, is suitable for various automation applications.
- Precise Control: Supports 2500 and 8192 ppr encoder motors, providing precise motion control.
- High Performance & Reliability: Adopts a dual-core architecture to achieve excellent performance and high reliability, ensuring stable system operation.
- Cost-Effective Solution: Provides a high-performance-price ratio servo solution to meet diverse automation control needs.
