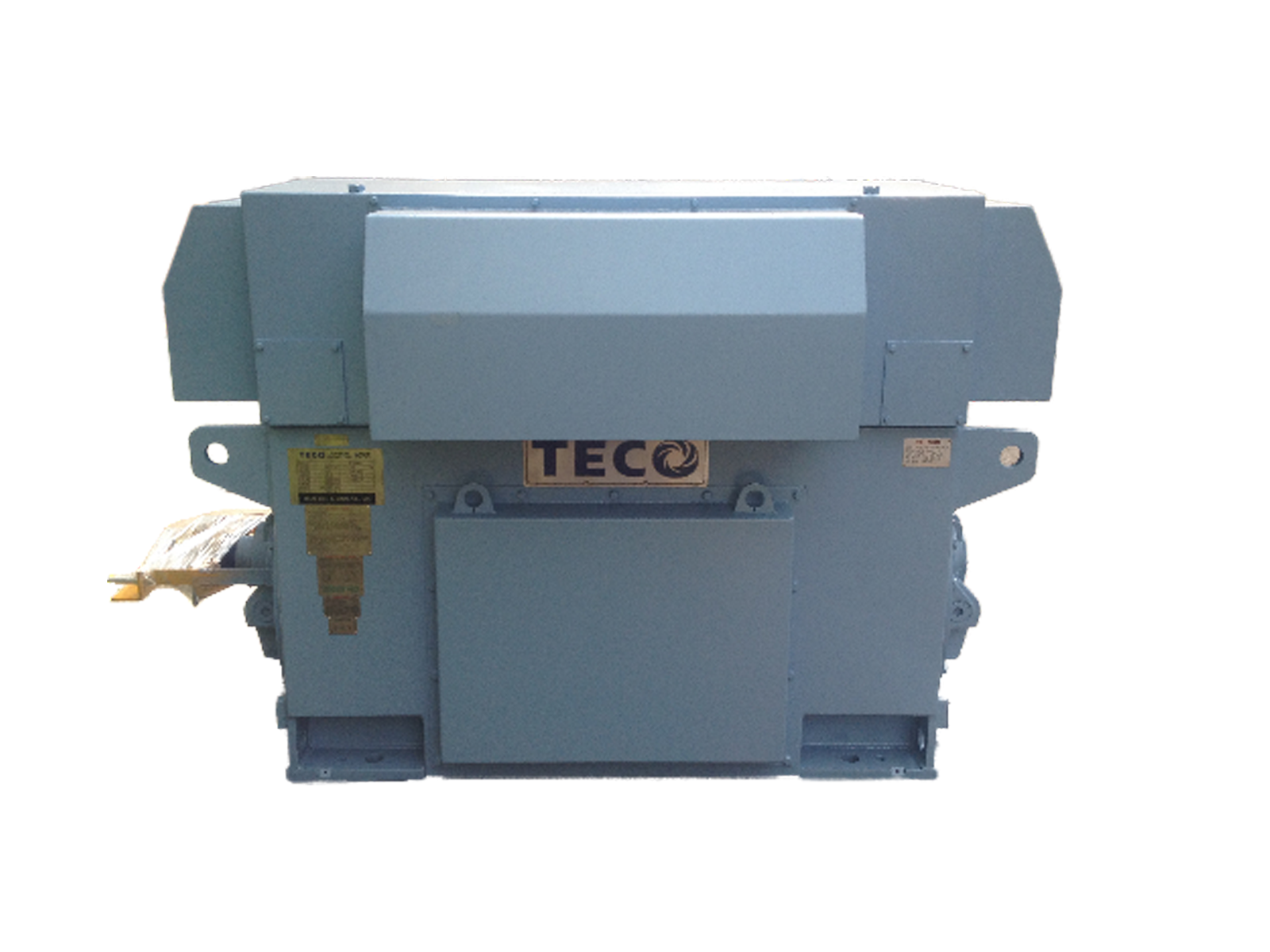

Weather Protected Type I Motors (WPI) – IEC
- Designed for use in indoor environments.
- Insulation system provides excellent dielectric strength and voltage resistance.
- Advanced bearing system ensures reliable performance.
- Robust box-type frame structure delivers high strength and durability.
- Heavy-duty rotor construction ensures dependable operation.
- Customizable designs available to meet specific application requirements.
Specification
| Motor Type | AMZK / AMCK |
| Output Range | 300~14900 kW |
| R.P.M. | - |
| Voltage | 50Hz: 3,000V, 6,000V, 11,000V / 60Hz: 4,000V, 6,600V, 11,000V |
| Frequency | 50、60 Hz |
| Frame Size | F# 355 ~ 900 |
| Pole | 2P-8P |
| Enclosure | IP23(WPI) |
| Design Standards | IEC |
Downloads
-
ASZK_AMZK_ANZK_AEZW_catalag_CN- 3kV
pdf
-
ASZK_AMZK_ANZK_AEZW_catalag_CN- 4kV
pdf
-
ASZK_AMZK_ANZK_AEZW_catalag_CN- 6.6kV
pdf
-
ASZK_AMZK_ANZK_AEZW_catalag_CN- 6kV
pdf
-
ASZK_AMZK_ANZK_AEZW_catalag_CN- 11kV (50Hz)
pdf
-
ASZK_AMZK_ANZK_AEZW_catalag_CN- 11kV (60Hz)
pdf
-
馬達使用說明書(Global和Crown系列皆適用) Instructions For Three Phase Induction Motors
pdf
