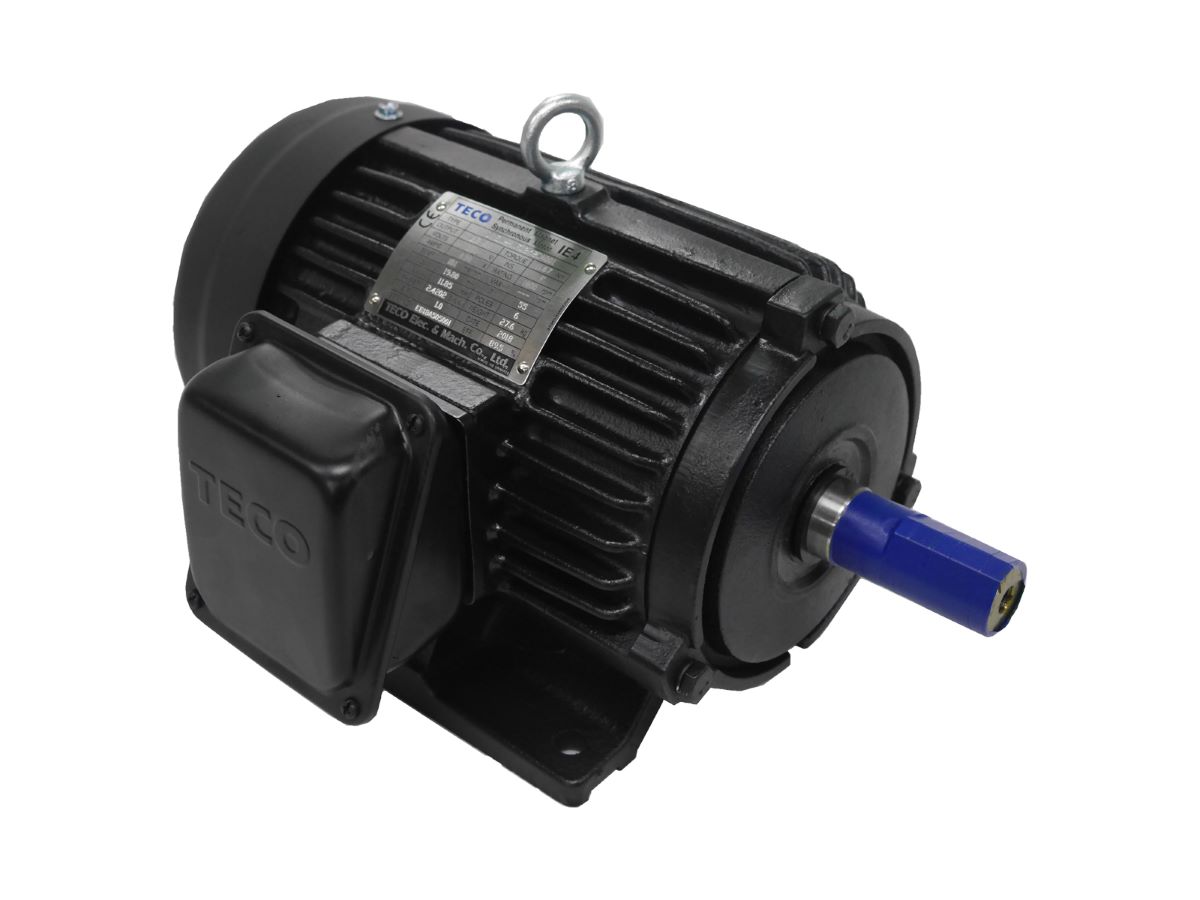

Cast Iron Frame F Series Self-Cooled Permanent Magnet Motors
- IE4 Level Efficiency
- Volume and weight reduced by over 40% compared to induction motors
- Same installation dimensions as induction motors, with low vibration and low noise characteristics
- Class F insulation, Class B temperature rise
- Industry Applications: Primarily for fluid machinery (pumps, fans, etc.)
Specification
| Motor Type | DVEN (Surface Permanent Magnet Motor) |
| Output Range | 0.75 ~ 22 kW |
| R.P.M. | 1200, 1800, 3600 R.P.M. |
| Voltage | 220V, 380V |
| Frame Size | F#80~180 |
| Pole | - |
| Enclosure | IP55 |
| Design Standards | IEC 60034 |
| Cooling | IC411 |
| Motor Type | DVEM (Integrated Permanent Magnet Motor) |
| Output Range | 0.75 ~ 22 kW |
| R.P.M. | 1200, 1800, 3600 R.P.M. |
| Voltage | 230V, 460V |
| Frame Size | 143T~286T |
| Pole | - |
| Enclosure | IP55 |
| Design Standards | IEC 60034 |
| Cooling | IC411 |
