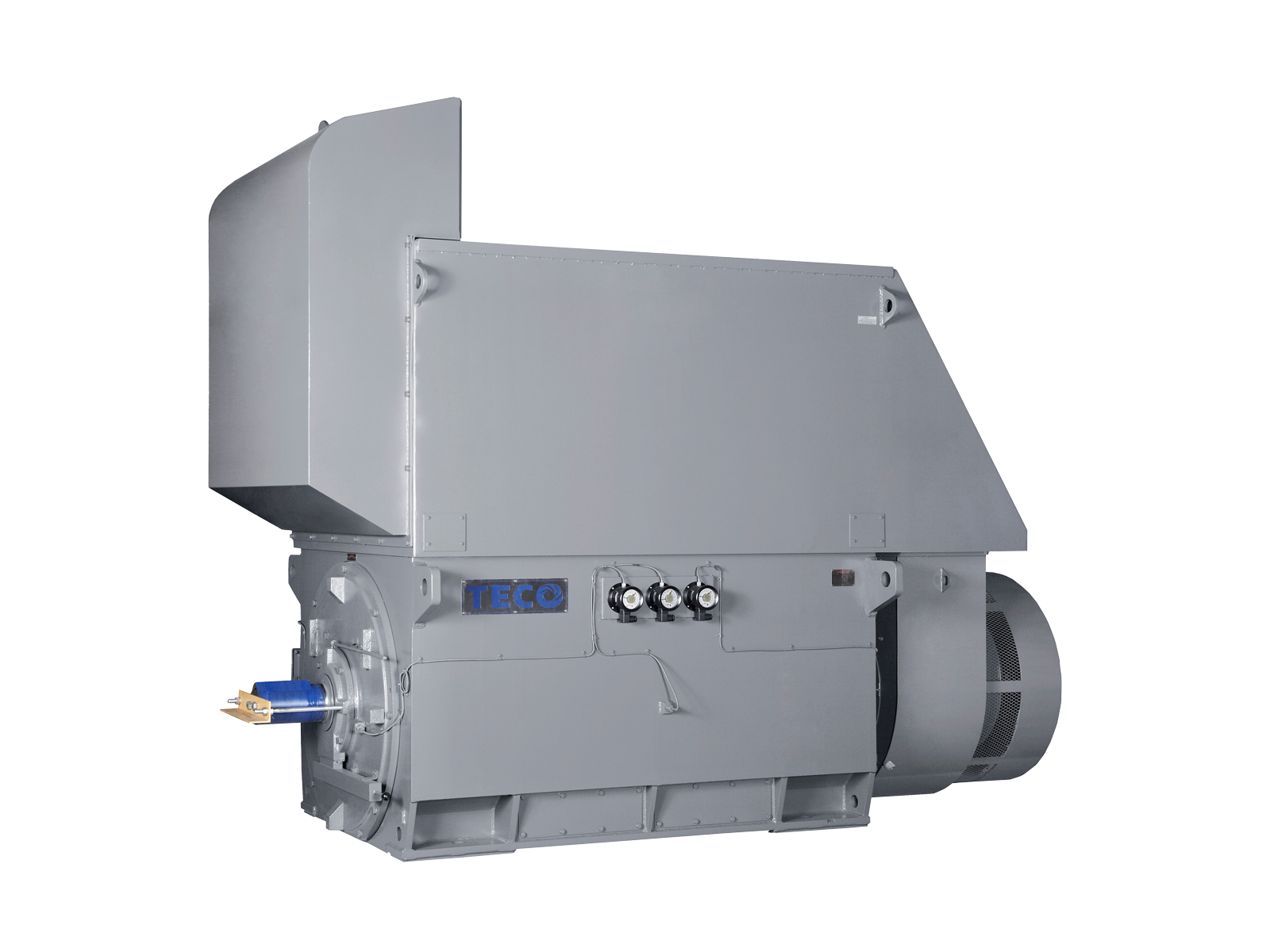

Totally Enclosed Air-to-Air Cooled Motors (TEAAC)
- Suitable for both indoor and outdoor installations.
- Insulation system provides excellent dielectric strength and voltage resistance.
- Advanced bearing system ensures reliable performance.
- Robust box-type frame structure offers high strength and durability.
- Heavy-duty rotor design delivers dependable operation.
- Customized designs available based on each customer’s specific application requirements.
Specification
| Motor Type | AEZK / AECK |
| Output Range | 220~11,200 kW |
| R.P.M. | - |
| Voltage | 50Hz: 3,000V, 6,000V, 11,000V / 60Hz: 4,000V, 6,600V, 11,000V |
| Frequency | 50、60 Hz |
| Frame Size | F# 355 ~ 900 |
| Pole | 2P-8P |
| Enclosure | IP54 |
| Design Standards | IEC |
