Integrated Drive and Control Logic for Precise Automation Control
TECO Industrial Automation systems integrate core drive and control technologies, encompassing stepping motors, servo systems, programmable logic controllers (PLCs), and human-machine interfaces (HMIs). This assists enterprises in building stable, flexible,
and highly efficient automation architectures.
The drive systems offer high-precision motion control capabilities, the PLCs enable multi-tasking logic process control, and the HMIs provide intuitive interfaces for human-machine interaction, making operation simpler and management smarter.
These solutions are suitable for diverse scenarios such as multi-axis coordination, production line linkage, and equipment monitoring. They are widely applied across industries including electronics, food processing, packaging, and metal working, comprehensively
enhancing process efficiency and standards.
Product

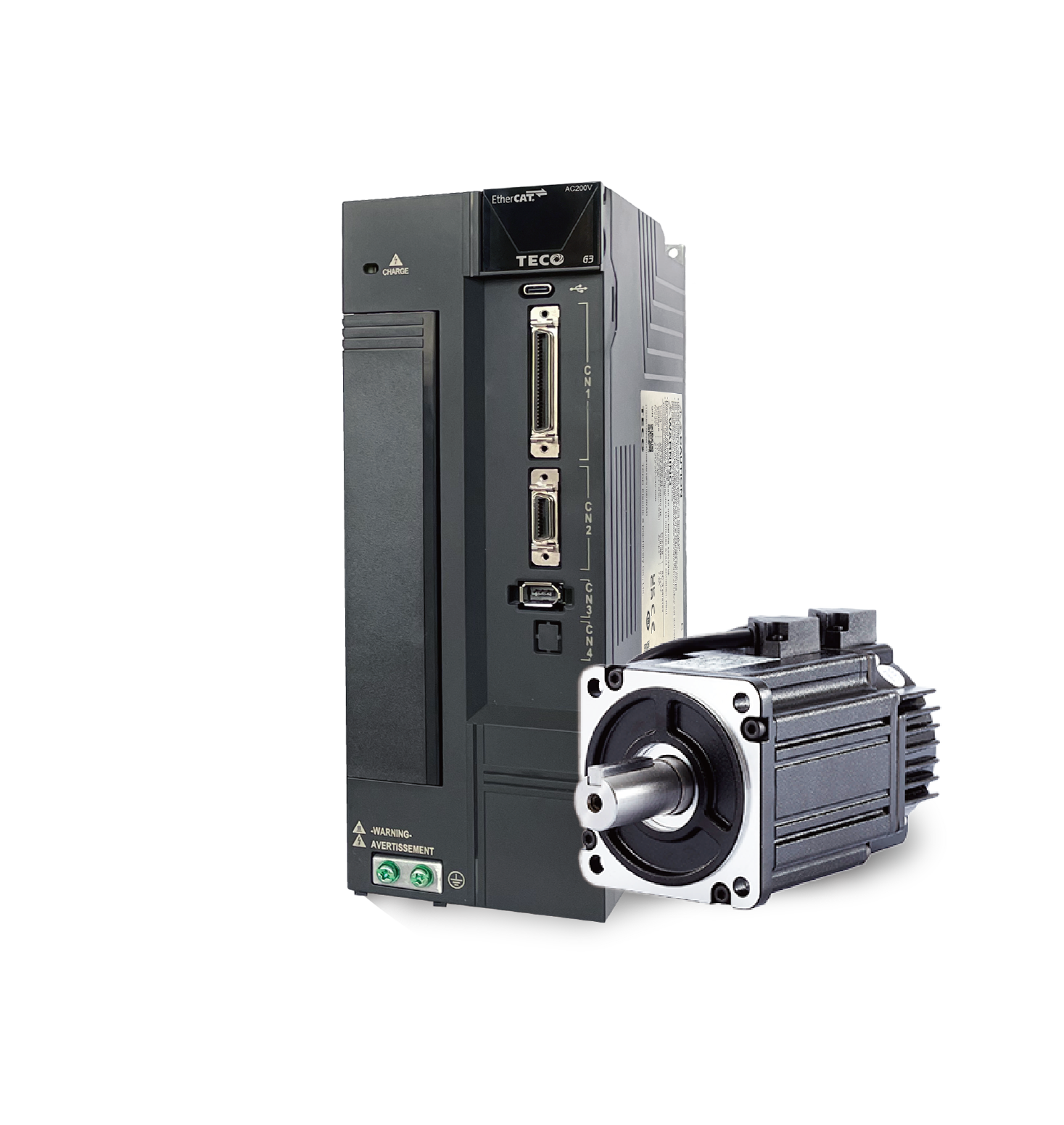

AC Servo Motors and Drives
TECO's new generation servo drives feature a slim profile design, high frequency response, short settling time, and support for high-resolution encoders, showcasing the "Fast, Precise, and Stable" control characteristics of TECO servos. They are compatible
with high-speed bus communication (EtherCAT/CANopen) and multi-axis applications.
New functions such as built-in auto-gain tuning, resonance suppression, and full-closed loop control are included. Paired with user-friendly monitoring and tuning software, they can be easily set up to meet various requirements.
TECO servo motors have a power range up to 15 kW and are equipped with 23-bit high-resolution encoders, offering low, medium, and high inertia options, as well as multiple speed selections. Performance specifications include a maximum speed of 6,000 rpm,
low cogging torque, compact motor length, and excellent temperature rise characteristics, ensuring reliable performance in all applications.

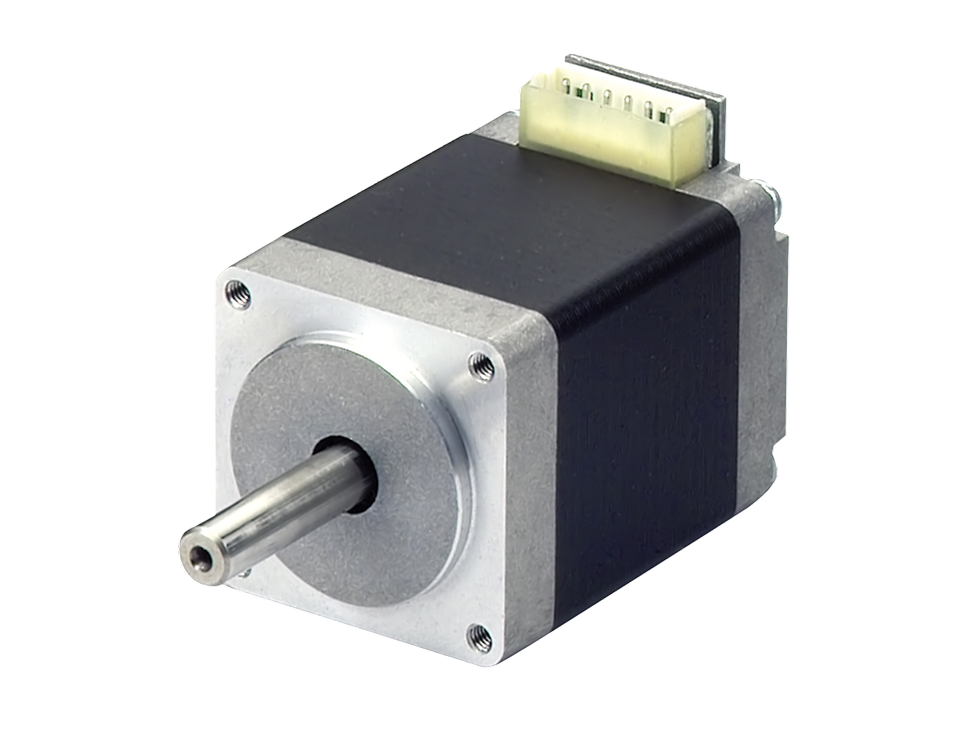

Stepping Motors
TECO stepping motors utilize open-loop control, resulting in a simple system architecture and sensitive response. The rotation speed changes linearly with the pulse frequency, offering precise positioning as well as
excellent start-stop and variable speed characteristics.
The design features high holding torque and minimal error, enabling stable low-speed, high-torque output. The brushless construction reduces component wear, leading to excellent reliability and service life, making
them suitable for a variety of light automation equipment.

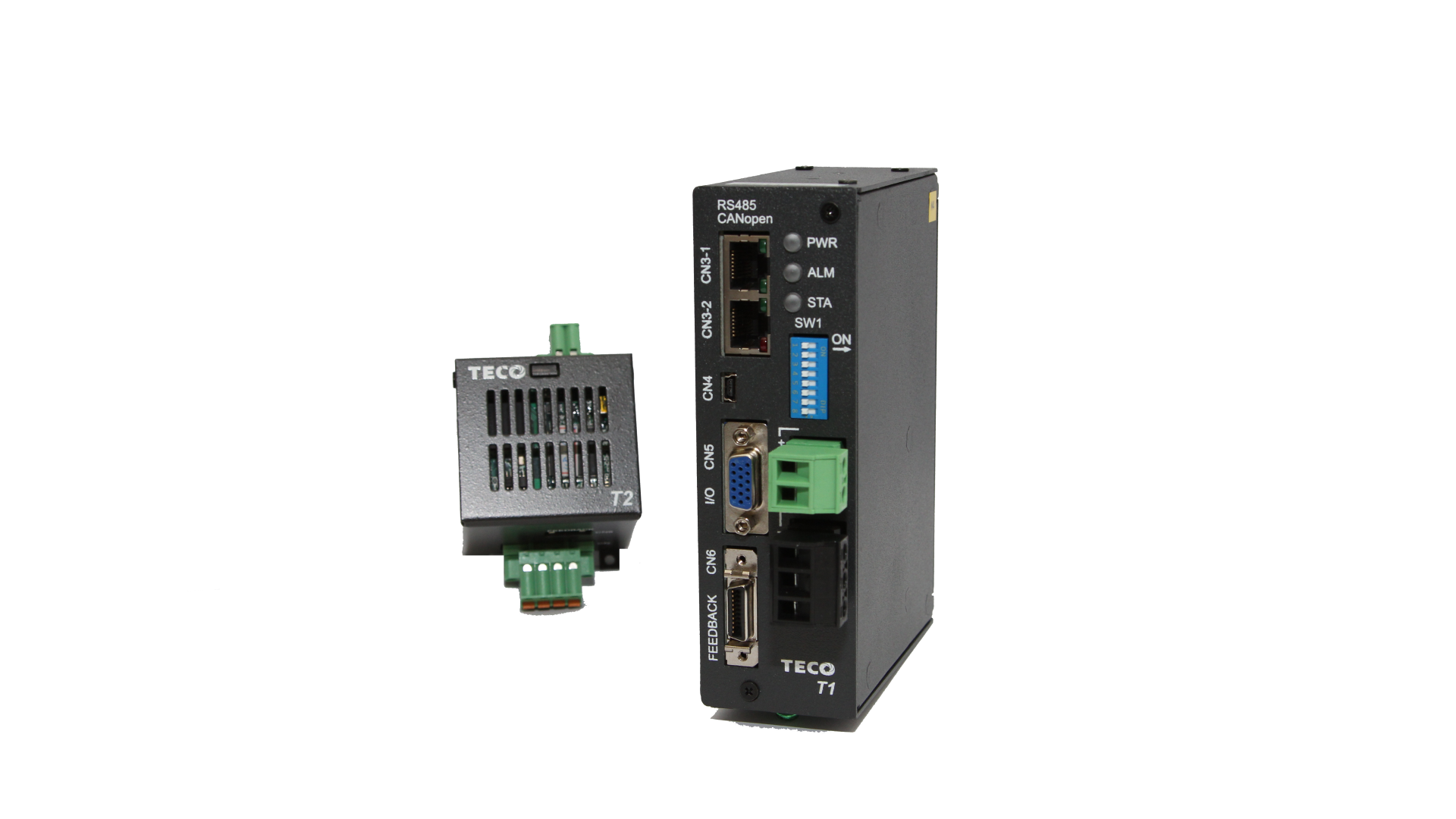

DC Servo Motors and Drives
TECO's DC servo drives meet the industrial control market's customer demands for DC power supply and high-speed communication motion control, aligning with the development trend of flexible mobile work equipment.
Models under 400W feature a compact, miniaturized design that effectively reduces the space required for installation and allows for flexible integration based on site requirements. Depending on the application needs, models supporting Modbus, CANopen,
or EtherCAT communication can be selected, satisfying the industrial control market’s requirements for openness, high speed, and real-time control.
They are suitable for applications requiring high precision and fast response, such as automated guided vehicles (AGVs), warehousing equipment, and collaborative robots.

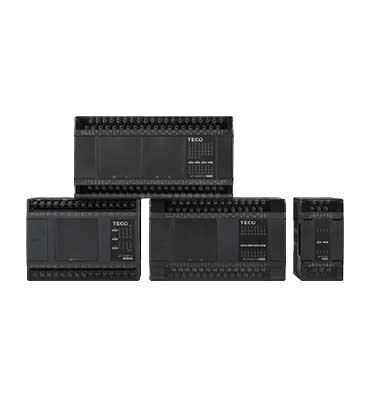

Motion Control and Programmable Logic Controllers (PLC)
TECO PLCs offer a complete set of standard basic/application instructions and built-in 200kHz high-speed counting and pulse output functions to control servo motor drives. They support linear and circular interpolation
functions, as well as PID auto-tuning control functions, making them suitable for applications such as temperature/humidity or constant pressure control, and achieving energy-saving benefits when paired with inverters.
The products are a new generation of high-quality, comprehensive solutions featuring a variety of expansion cards and modules for digital, analog, and communication needs.

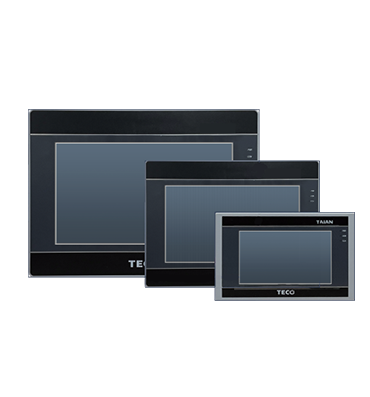

Human-Machine Interface (HMI)
The HMI supports connectivity for various devices (audio, video, printers, Ethernet, etc.) and features diverse built-in software functions. These functions can be applied to centralized monitoring systems, safety control,
customized communication protocols, multi-device networking, recipe management, and more.
It includes comprehensive data logging capabilities, providing alarm records, event logs, and automatic storage after a trigger event. It also supports storage via SD cards and USB flash drives, with support for SD
card capacities up to 4GB.
Application

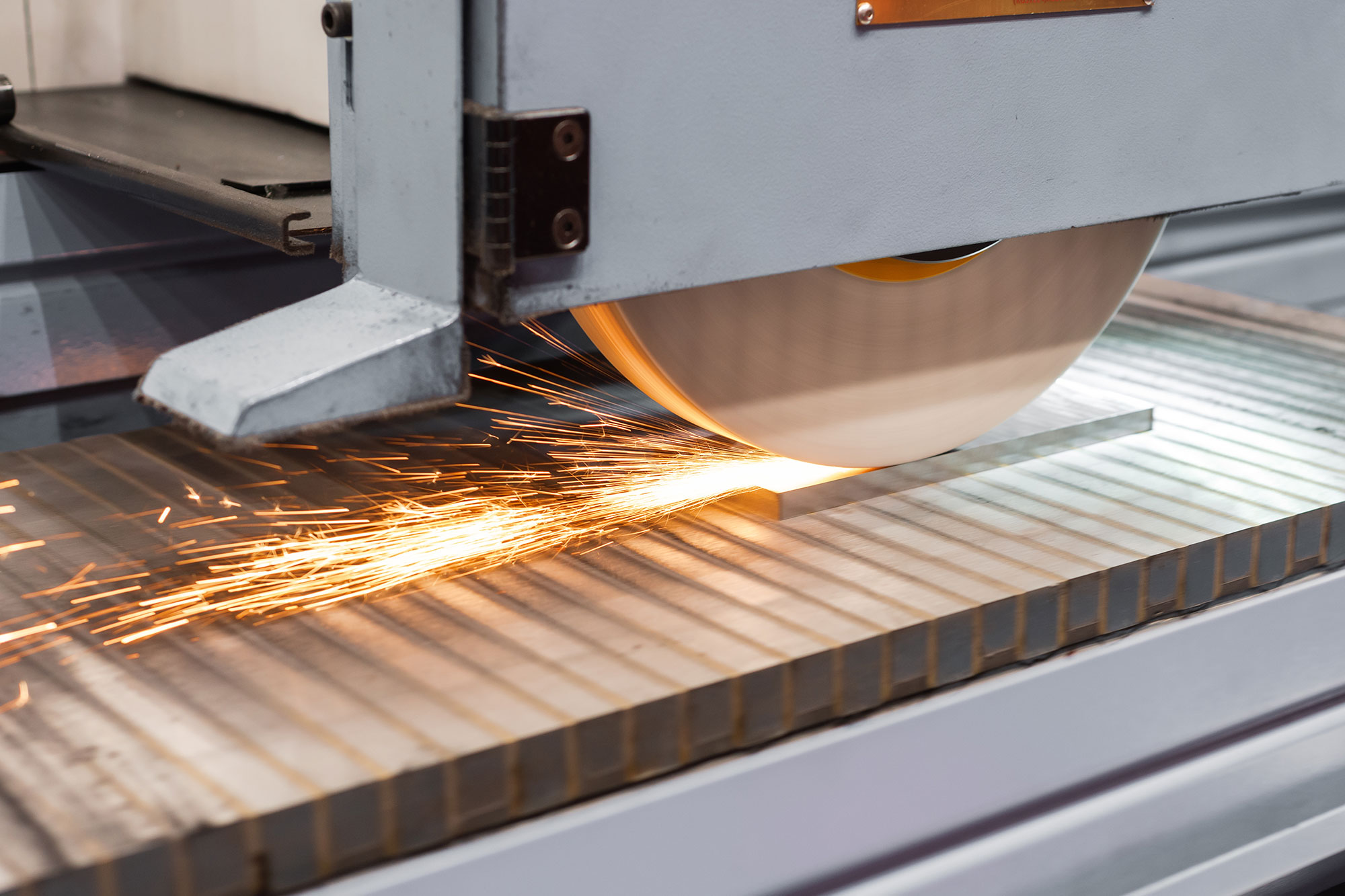

Applications in Steel Equipment Manufacturing
High-Precision Control Solution for H-Beam Laser Cutting Machines
The JSDG3-E servo drive has been successfully applied to H-beam laser cutting machines. By combining EtherCAT communication with high dynamic response characteristics, it enhances multi-axis control precision.
Featuring auto-tuning and gantry synchronization functions, the cutting accuracy reaches ±0.02 mm, efficiency is improved by 15%, and total costs are reduced by 10%. The IP67 protection rating meets stringent processing
demands, creating a highly efficient and stable automation solution for the industrial manufacturing sector.

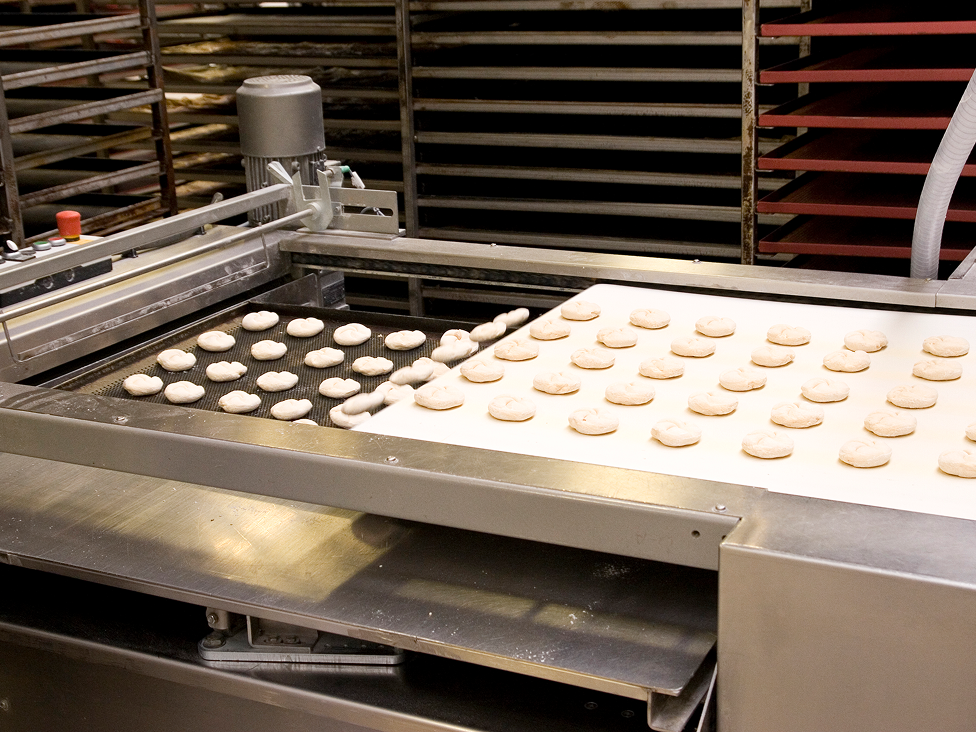

Applications in the Food Industry
Automatic Liquid Filling and Baking Tray Arranging Machine Solutions
The JSDG2S-15A and JSDEP-15A servo drives have been successfully applied to automatic liquid filling machines and baking tray arranging machines in the food manufacturing industry. By integrating TECO automation products
such as HMIs, PLCs, and Inverters, stable multi-axis control and high-precision operation are achieved via CANopen and RS485 communication.
This solution effectively increases production capacity, reduces errors, and minimizes manual labor allocation. It is widely implemented in beverage and food production lines, assisting in the intelligent upgrade of
manufacturing lines.

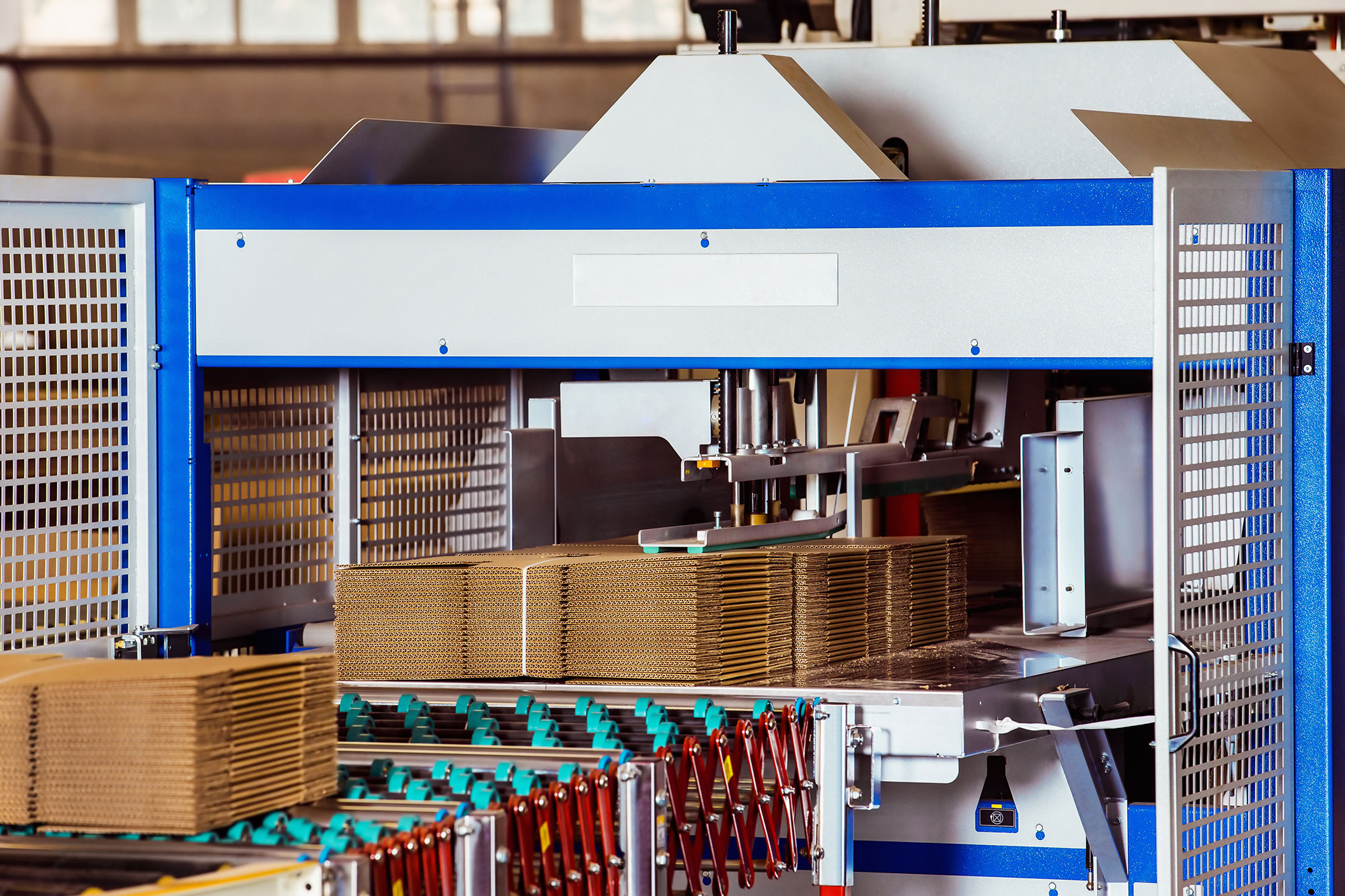

Applications in the Packaging Industry
Corrugated Cardboard Slotting and Plastic Bag Labeling Control Solutions
The JSDG2S series servo drives have been successfully applied to cardboard slotting machines and dual-channel plastic bag labeling machines in the packaging industry. Paired with the MP500-E08A controller and MH1500-1
HMI (Human-Machine Interface), multi-axis synchronization and high-precision positioning are achieved via EtherCAT communication.
Featuring real-time compensation and intuitive adjustment functions, efficiency reaches 62.5 pieces per minute, and labeling accuracy is improved. This effectively reduces manual intervention, creating a highly efficient
and stable smart packaging production line.

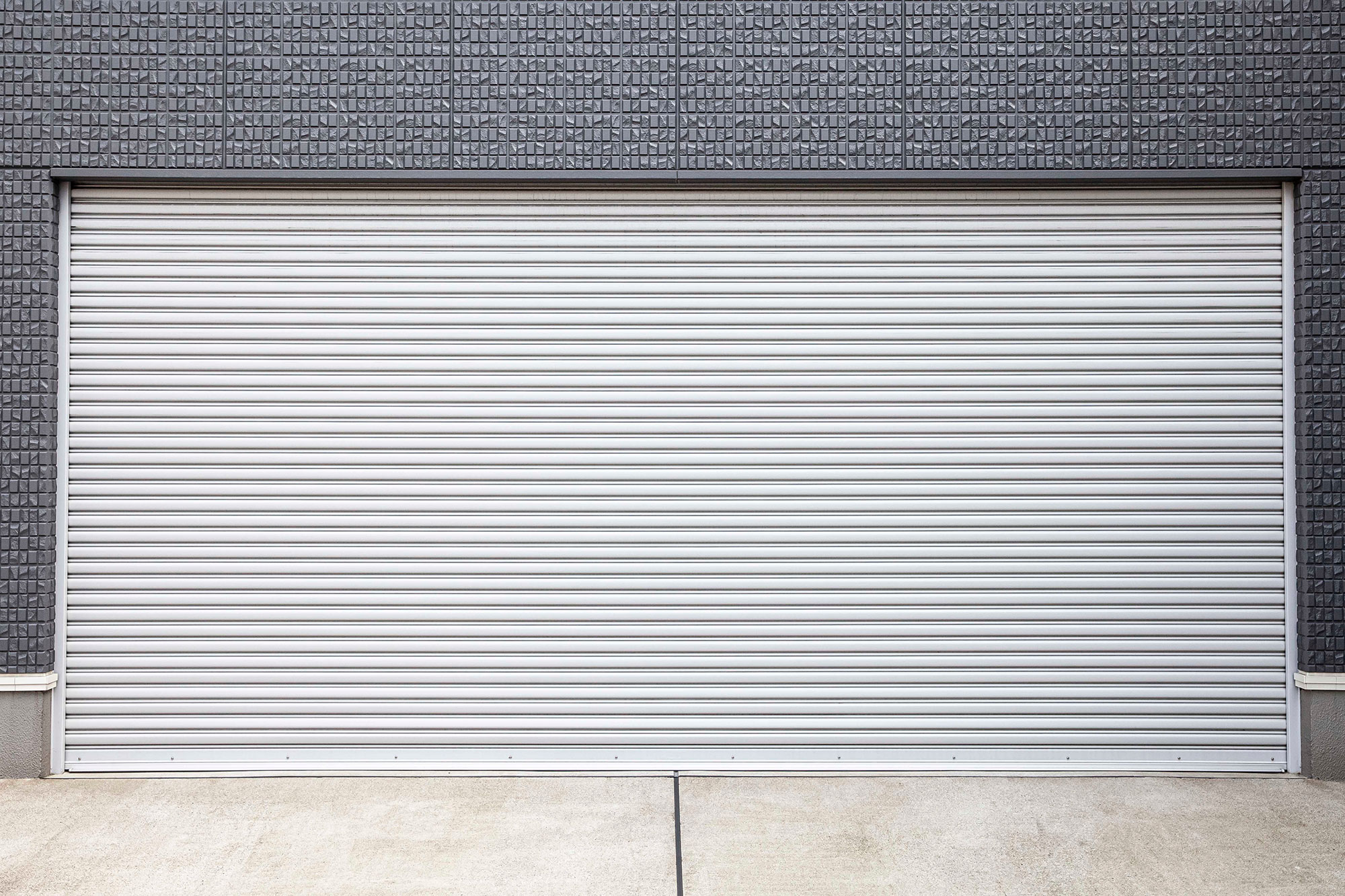

Applications in Warehousing Equipment
High-Speed Rolling Door Servo Control Solution
The JSDG3-E servo drive, paired with the JSMA-PMB motor, integrates EtherCAT communication, automatic recovery, and position memory functions, and has been successfully applied to industrial high-speed rolling door systems.
It features IP67 protection, high-speed opening (≧1.5m/s), and precise stop control, improving opening and closing efficiency by 20% and reducing maintenance costs by 15%. It is widely used in logistics, cold chain storage, and food warehousing facilities, achieving efficient, safe, and stable entrance/exit management.
