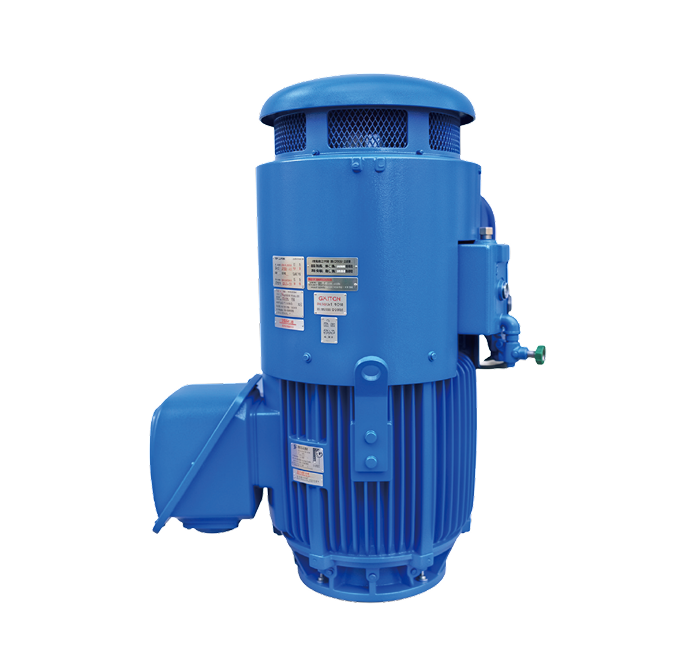

Totally Enclosed Fan Cooled (TEFC) Hight Thrust Motors (NEMA)
Engineered for extreme deep-well demands, this heavy-thrust motor maximizes system uptime with rugged weatherproofing and versatile drive compatibility.
- High Axial Thrust Capability for Vertical Pump
- IP55 Totally Enclosed Design for Harsh Outdoor Duty
- Flexible Operation with DOL, Reduced Voltage & VFD Control
- Totally Enclosed Fan-Cooled (TEFC) Structure
Specification
| Motor Type | AFEHED |
| Output Range | 200 - 1000HP |
| R.P.M. | 1800 – 900 |
| Voltage | 460 V, capable of running on 380 V / 50 Hz; 575 V is available |
| Frequency | 60HZ |
| Frame Size | 5009B – 5810B |
| Pole | 4 - 8 |
| Enclosure | Totally enclosed, IP55 |
| Amb. Temp. | -15°C ~ 40°C |
| Cooling | Self external fan, surface cooling (IC 411) |
