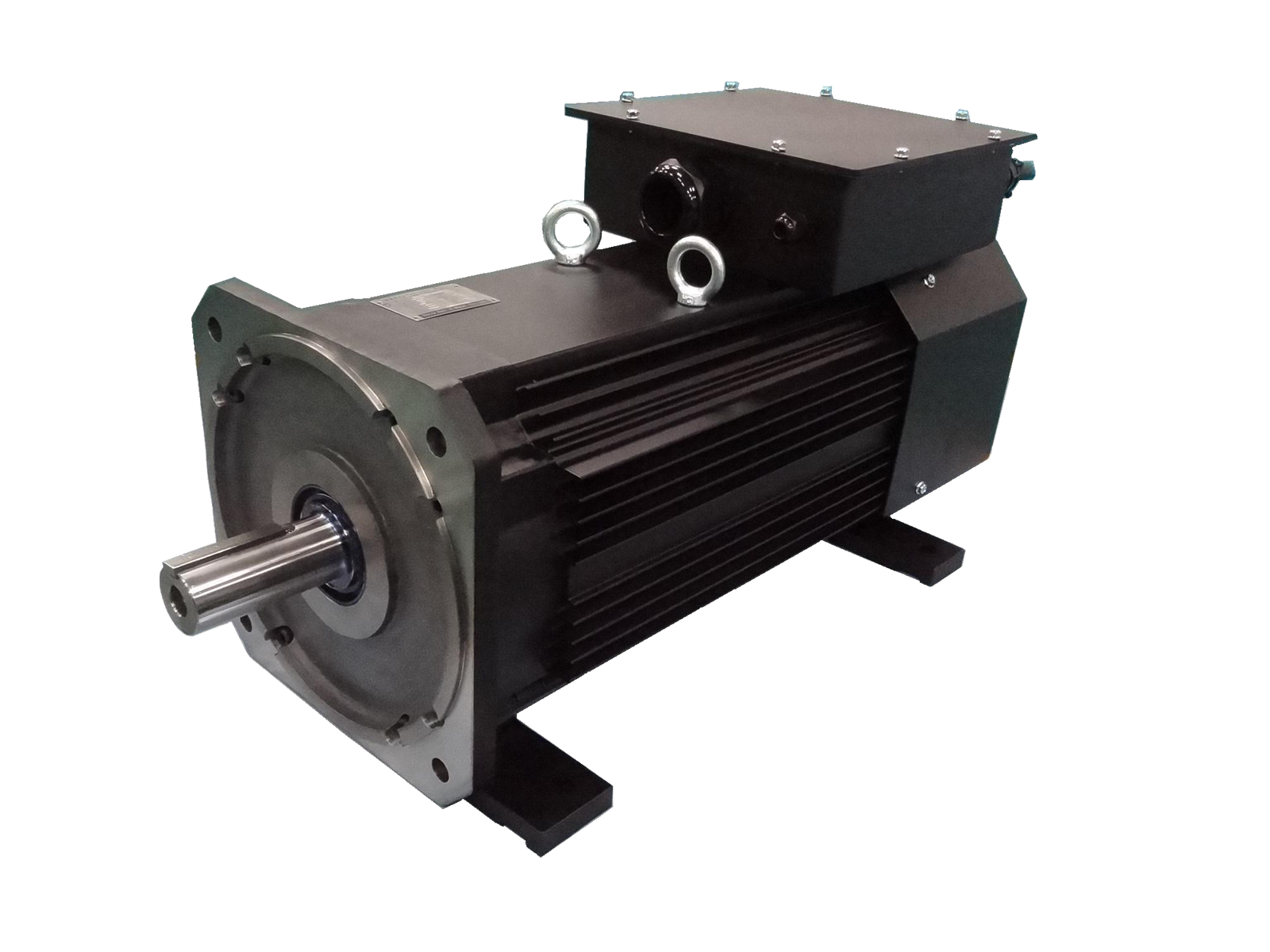

Aluminum Frame Force-Cooled Permanent Magnet Motors
- IE4 Inverter Efficiency Level (IEC60034-30-2 compliant)
- Volume and weight reduced by over 40% compared to induction motors
- High torque at low speeds, high response, with low vibration and low noise characteristics
- Class F insulation, Class B temperature rise
- Industry Applications: Primarily for general industrial machinery applications
Specification
| Motor Type | DVLF (Surface Permanent Magnet Motor) |
| Output Range | 2.2 ~ 75 kW |
| R.P.M. | 1000, 1500, 2000 R.P.M. |
| Voltage | 220V, 380V |
| Frame Size | F#112~160 |
| Enclosure | IP55 |
| Design Standards | IEC 60034 |
| Cooling | IC416 |
| Motor Type | DVLS (Integrated Permanent Magnet Motor) |
| Output Range | 15 ~ 90 kW |
| R.P.M. | 3000, 4500 R.P.M. |
| Voltage | 220V, 380V |
| Frame Size | F#132, 160 |
| Enclosure | IP55 |
| Design Standards | IEC 60034 |
| Cooling | IC416 |
