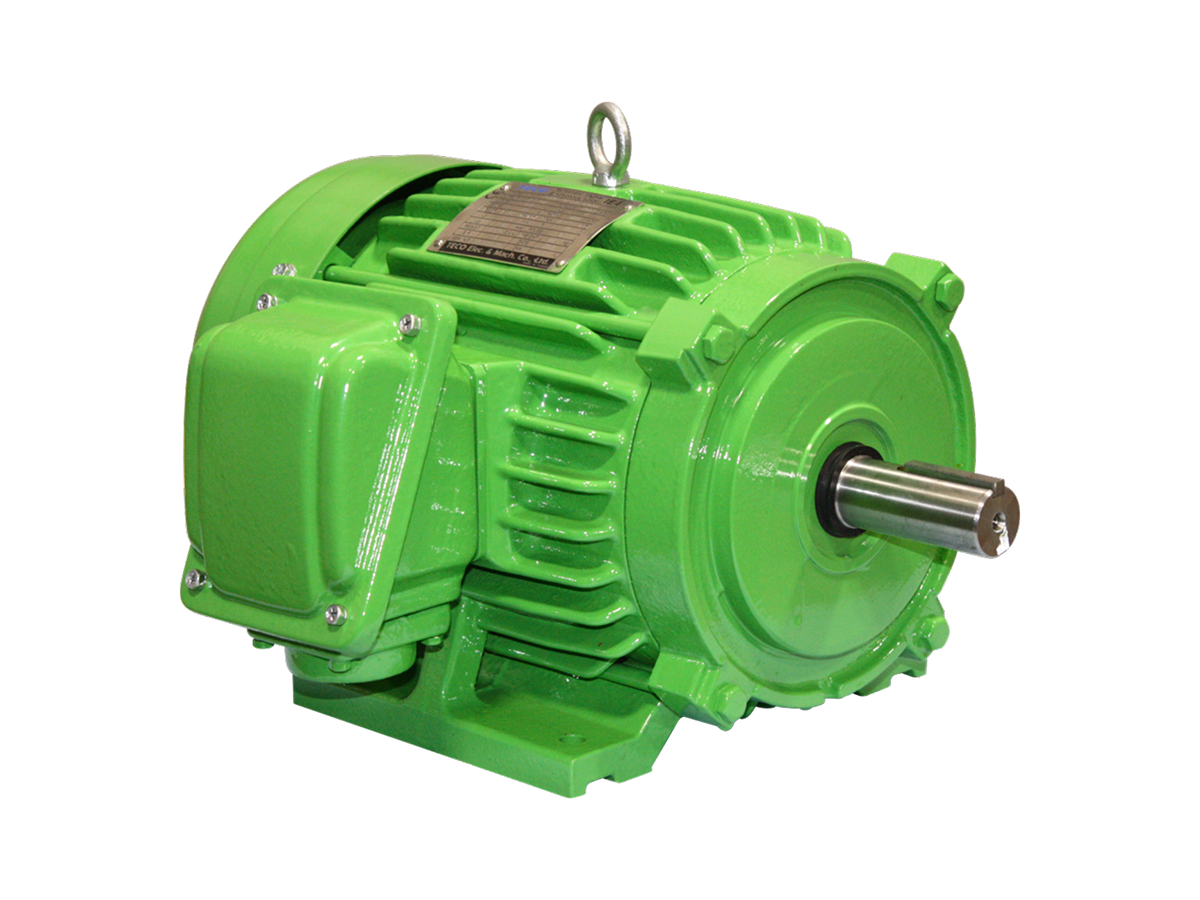

Cast Iron Frame NEMA Series Self-Cooled Permanent Magnet Motors
- IE4/IE5 Performance: Minimizes power usage and carbon emissions.
- Premium Materials: NdFeB permanent magnet rotor + Cast iron housing.
- Reliable Specs: IP55 protection, Class F insulation, IC410/411 cooling.
- Full Torque Control: Wide constant torque support; compatible with PM-specific VFDs.
- Expanded Versatility: Optimized for diverse and high-precision industrial use.
Specification
| Motor Type | DEVM (IE4) |
| Output Range | 1HP~30HP |
| R.P.M. | 1200, 1800, 3600 R.P.M. |
| Voltage | 460V |
| Frame Size | 143T~286T |
| Enclosure | IP55 |
| Cooling | IC411 |
| Motor Type | DVEZ (IE5) |
| Output Range | 1HP~50HP |
| R.P.M. | 1200, 1800, 3600 R.P.M. |
| Voltage | 230V/460V |
| Frame Size | 143T~365T |
| Enclosure | IP55 |
| Cooling | 143T-184T: IC410 213T-365T: IC411 |
