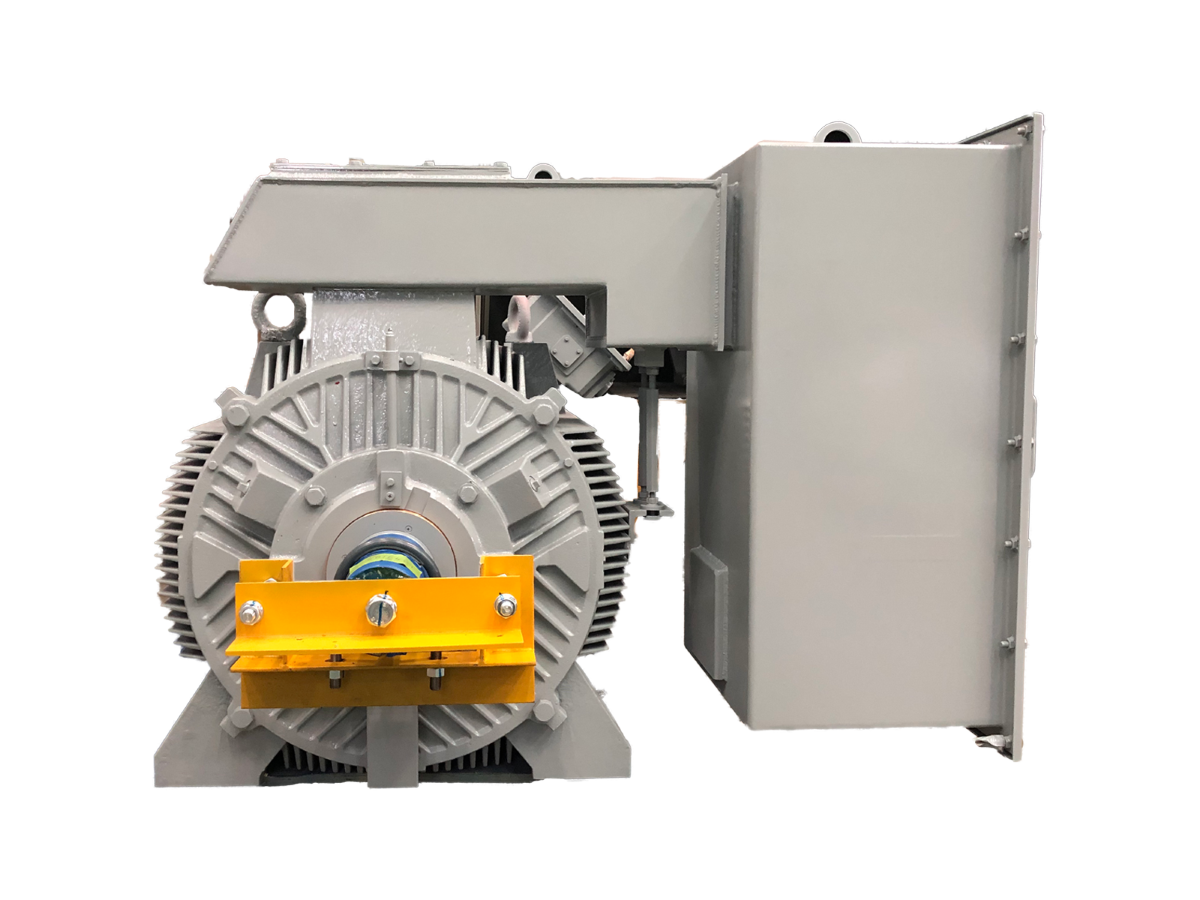

Totally Enclosed Fan-Cooled (TEFC) Motors (NEMA)
- Premium efficiency meeting NEMA PREMIUM standards.
- Low vibration in compliance with NEMA MG-1.
- F-class insulation, B-temperature rise, suitable for variable frequency operation.
- Cast-iron frame and base, designed for harsh operating environments.
- Three-phase motor design meets key international performance and quality standards, offering low noise, long service life, and excellent commercial and industrial value.
Specification
| Motor Type | AEHG / AFHG / AFHP |
| Output Range | 100-2000HP |
| R.P.M. | - |
| Voltage | 2300-6600V |
| Frequency | 60 Hz |
| Frame Size | F#444-6812 |
| Pole | 2P-8P |
| Enclosure | TEFC, IP55 |
| Design Standards | NEMA MG-1 , MG-13 |
