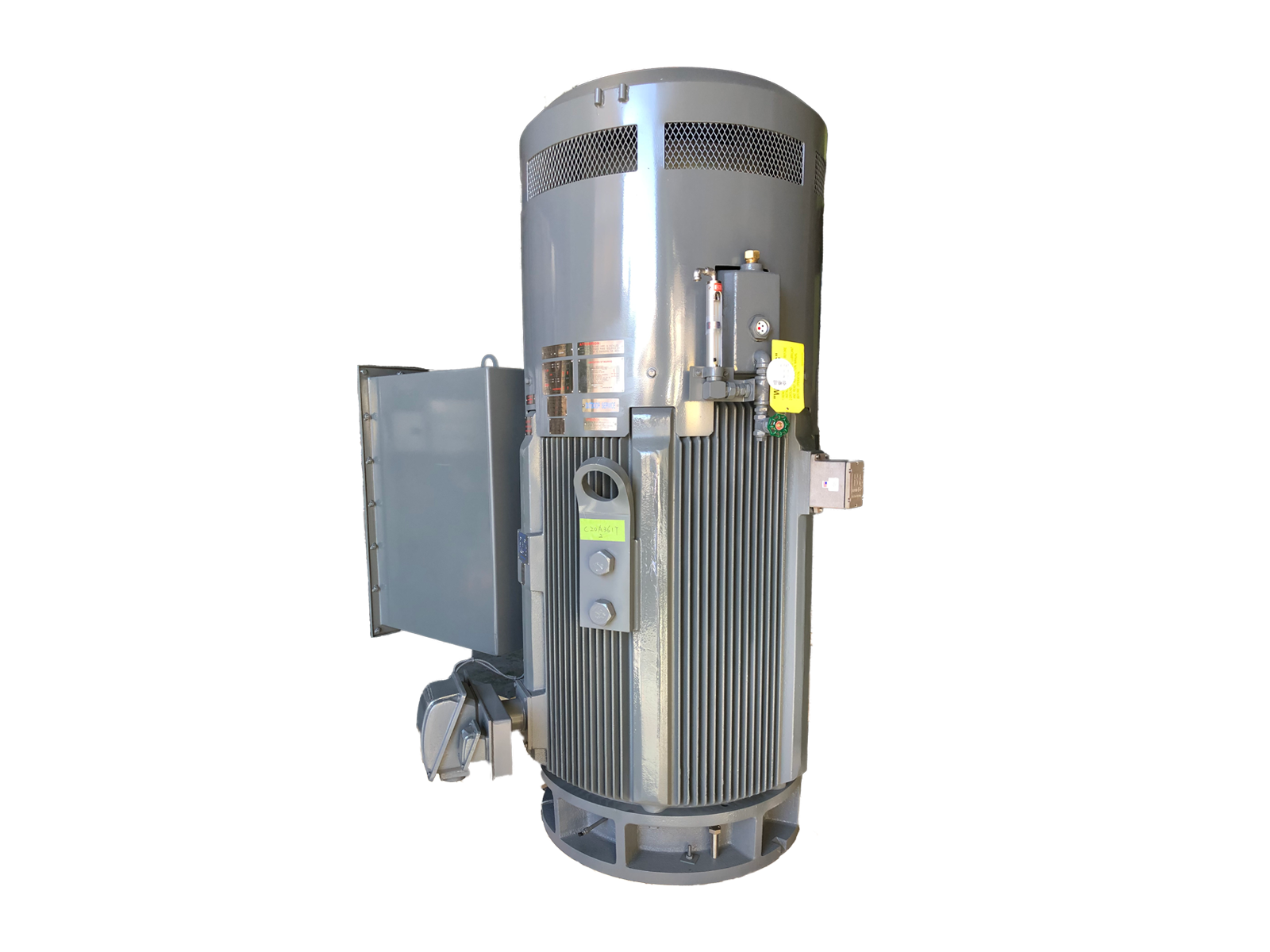

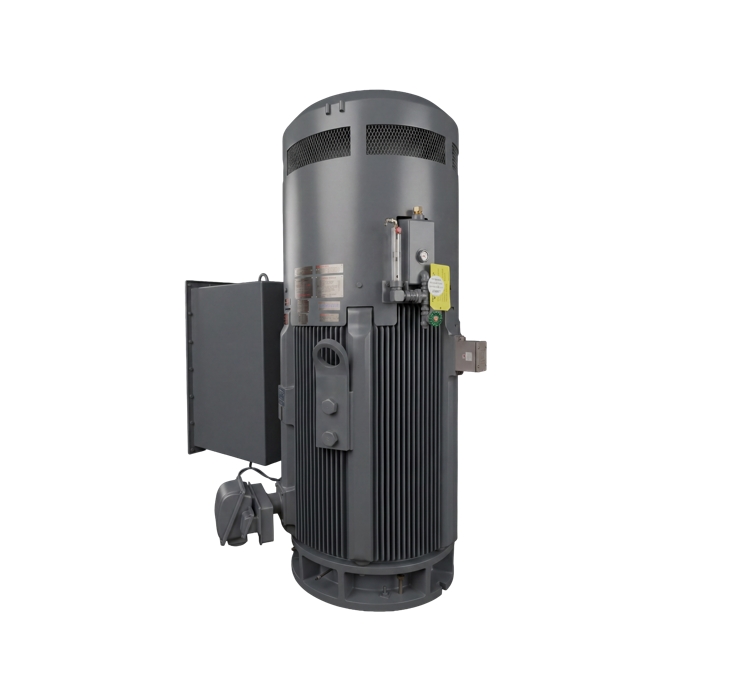

High-Voltage TEFC Pump Motors
- Premium efficiency meeting NEMA Premium standards.
- Low vibration compliant with NEMA MG-1 requirements.
- Class F insulation, Class B temperature rise, compatible with VFD operation.
- Suitable for applications requiring high thrust loads.
- Cast-iron frame, ideal for harsh operating environments.
- Designed to meet major international performance and quality standards, delivering low noise, long service life, and excellent industrial value.
Specification
| Motor Type | AEHCNH (空心軸Hollow Shaft) / AEHCED (實心軸Solid Shaft) |
| Output Range | 100~700HP |
| R.P.M. | - |
| Voltage | 2300~4160V |
| Frequency | 60 Hz |
| Frame Size | F#444~5810 |
| Pole | 4P~8P |
| Enclosure | TEFC, IP55 |
| Design Standards | NEMA MG-1, MG-13 |
