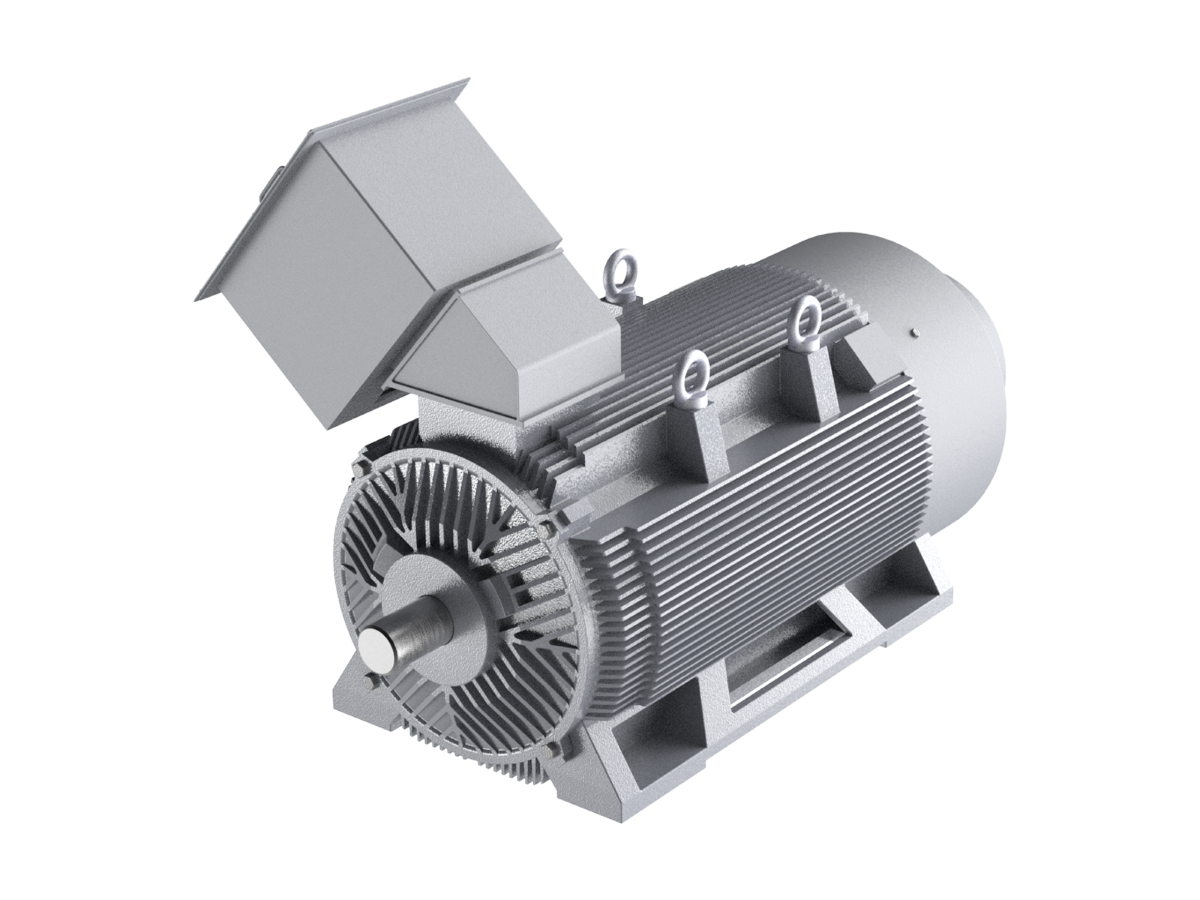

Medium-Voltage Totally Enclosed Fan-Cooled (TEFC) Motors (IEC)

  1. Premium efficiency reaching IE3 level.
  2. Low vibration in compliance with IEC 60034.
  3. F-class insulation, B-temperature rise, suitable for variable frequency operation.
  4. Highest power density ratio.
  5. Cast-iron frame and base, designed for harsh operating environments.
  6. Three-phase motor design meets key international performance and quality standards, providing low noise, long service life, and excellent commercial and industrial value.
Medium-Voltage Totally Enclosed Fan-Cooled (TEFC) Motors (IEC)

Specification





Motor Type AFJP
Output Range 280-1500KW
R.P.M. -
Voltage 2300-6600V
Frequency 60 Hz
Frame Size F#355C-500D
Pole 2P-8P
Enclosure TEFC, IP55
Design Standards IEC60034
